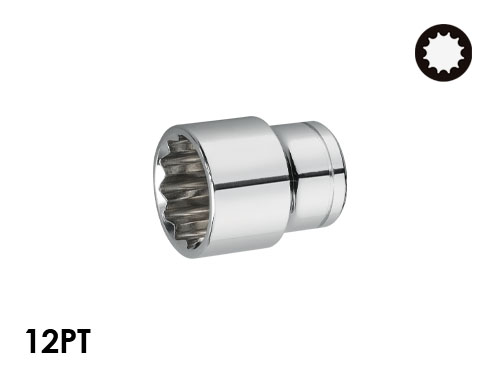

3/8"DR. 12PT Sockets - mm
- Material : Chrome vanadium alloy steel.
- 12 points.
- 4 ball retaining grooves.
- Surface finishing : Chrome plating.
- Metric size.



12PT Sockets

Item No. SW (mm) D1 (mm) D2 (mm) L (mm)
MS306012M 6 10.0 16.8 28
MS307012M 7 10.8 16.8 28
MS308012M 8 12.0 16.8 28
MS309012M 9 13.1 16.8 28
MS310012M 10 14.5 16.8 28
MS311012M 11 15.7 16.8 28
MS312012M 12 16.8 15.7 28
MS313012M 13 17.8 16.5 28
MS314012M 14 19.6 17.5 28
MS315012M 15 21.8 19.5 28
MS316012M 16 21.8 19.5 28
MS317012M 17 23.8 21.5 30
MS318012M 18 25.8 23.5 30
MS319012M 19 25.8 23.5 30
MS320012M 20 27.8 25.0 30
MS321012M 21 27.8 25.5 30
MS322012M 22 29.7 26.5 30
MS323012M 23 31.8 28.5 30
MS324012M 24 31.8 29.0 30
