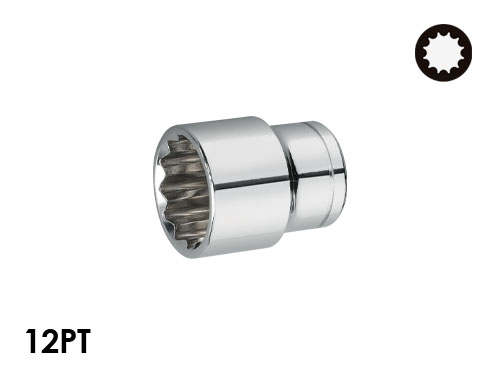

1/2"DR. 12PT Sockets - mm
- Material : Chrome vanadium alloy steel.
- 12 points.
- 4 ball retaining grooves.
- Surface finishing : Chrome plating.
- Metric size.



12PT Sockets

Item No. SW (mm) D1 (mm) D2 (mm) L (mm)
MS408012M 8 13.2 21.8 38
MS409012M 9 13.9 21.8 38
MS410012M 10 15.0 21.8 38
MS411012M 11 16.3 21.8 38
MS412012M 12 17.6 21.8 38
MS413012M 13 18.8 21.8 38
MS414012M 14 20.4 21.8 38
MS415012M 15 21.0 21.8 38
MS416012M 16 21.8 21.8 38
MS417012M 17 23.8 22.0 38
MS418012M 18 25.8 23.5 38
MS419012M 19 25.8 23.5 38
MS420012M 20 27.8 24.0 38
MS421012M 21 27.8 25.0 38
MS422012M 22 29.8 26.0 38
MS423012M 23 31.6 27.0 40
MS424012M 24 31.8 28.0 40
MS425012M 25 33.8 30.0 40
MS426012M 26 33.8 30.0 42
MS427012M 27 35.8 30.0 42
